/Dongfeng 5000L Water Sprinkle Vacumble Septic Pump Truck Sewer Suction Vehicle
- USD 16200.00 /Unit
- 1 Unit
- 96 Unit
- 25 days
Product Description
We are a leading manufacturer ofSewage Suction Truckthat located in middle of China , my city call Suizhou and it is the city of special truck ,it formed a industry chain here with spare parts support and other technical support .Sewage suction truck also namedvacuum sewage suction truck, sewage tanker. we can provide customers all kinds ofsewage suction truck with competitive price and high quality, We can also design for different kinds ofsewage suction truck .Following is thesewage suction truck detail feature , any question, please feel free to contact me
A vacuum truck is a tank truck with a heavy duty vacuum designed to pneumatically load solids, liquids, sludge or slurry through suction lines typically 2-4" in diameter with 3" being the norm. The typical pump used in the industry is the rotary vane vacuum pump. The truck can be configured to be a direct PTO/belt or a PTO/hydraulic drive system. There are two different ways to mount the pump either directly on the truck with PTO drive or on the trailer with a pony motor. Each application has different handling characteristics.
The trucks are often used by towns and municipalities for street cleanup, sewers, individual septic systems ,and can also be used for cleanup of contaminated soil.The trucks are used in the cleaning of sanitary sewer lift stations and in the pump out of grease interceptors that are required at many restaurants. The trucks are mostly used in the petroleum industry, for cleaning of storage tanks and spills. They are also an important part of drilling oil and natural gas wells, as they are located at the drilling site. Vacuum trucks are used to remove drilling mud, drilling cuttings, cement, spills, and for removal of brine water from production tanks. They dispose of this in sump pits, treatment plants or if within safe levels may be spread out in a farmer's field.
Equipment is designed to collect, by suction, and transport the sewage and sludge. Cesspit emptier consists of a subframe connected to the vehicle's chassis. A cylindirical tank, a hydraulically openning full diameter tailgate and the vacuum system powered by the PTO mounted to the gearbox of the vehicle. All the functions and the load distribution of the equipment are properly arranged to the technical specifications of the chassis on which it is mounted. The equipment is manufactured in serial production principals taking into account legal regulations.
Thevacuum truck cubage from 2000L-16000L
The drive type with 4*2,4*4,6*4,6*6,8*4, you can choose left hand drive
Many truck chassis for you choice,such as Dongfeng,FAW,NorthBenz,Foton,NISSAN,Hino,
HOWO,SINOTRUK,JAC,ISUZU,etc.
Our gurantee period is 12months or 8000KM which comes first .
so if you have such requirements ,please contact me with cell phone 86-13872885121 .
dongfeng 5000L water sprinkle Vacumble septic pump truck sewer suction vehiclespecification:

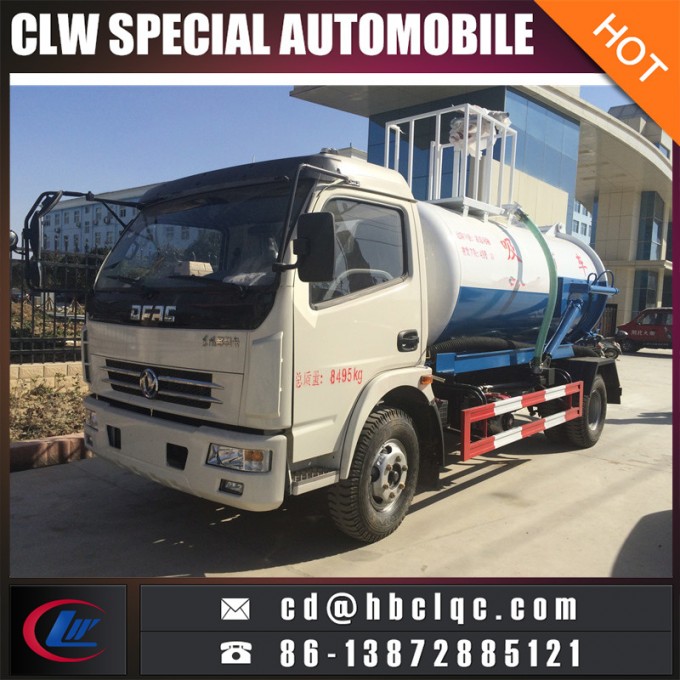

dongfeng 5000L water sprinkle Vacumble septic pump truck sewer suction vehiclePhoto:
MOQ:Q1. Quality control
A:We make quality control for each step while producing and before shipping.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packagesbefore you pay the balance.LC terms is also can be accepted .
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.DAP etc .
Q4. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time dependson the items and the quantity of your order.For standard products, delivery time is as below:Water Tanker truck:7 days
Fuel tanker trailer:15-20days
Garbage Truck:15 days
Sweeper road truck:25 days
Wecker truck:7-10 days
Suction sewage/Fecal truck:7-15 days
Crane truck:15 days
Refrigerator/Van truck:7-15 days
Dump Truck:20 days
Concrete mixer truck:7-25 days
LPG :20-30 days
LED truck:7-15 days
(the above is left hand drive chassis ,if you need the right hand drive chassis ,delivery time is longer than Left hand drive truck,Detailed clauses are subject to contract .)
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. How to control truck quality?
A: we have Rich experienceworkers and engineer to control quality before and on production , we strictly followed STATE special truck technical specificationandsafety production specification .We have been in this line for over 15 years, dealing with all kinds of special trucks and trailers.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.Q9. Did you sell truck to our country before?A:Our main market is Africa, Asia, South America , Oceania,middle east , annual sales is around 5000units and keeping growing every year .Certificate :
Shipping :
A vacuum truck is a tank truck with a heavy duty vacuum designed to pneumatically load solids, liquids, sludge or slurry through suction lines typically 2-4" in diameter with 3" being the norm. The typical pump used in the industry is the rotary vane vacuum pump. The truck can be configured to be a direct PTO/belt or a PTO/hydraulic drive system. There are two different ways to mount the pump either directly on the truck with PTO drive or on the trailer with a pony motor. Each application has different handling characteristics.
The trucks are often used by towns and municipalities for street cleanup, sewers, individual septic systems ,and can also be used for cleanup of contaminated soil.The trucks are used in the cleaning of sanitary sewer lift stations and in the pump out of grease interceptors that are required at many restaurants. The trucks are mostly used in the petroleum industry, for cleaning of storage tanks and spills. They are also an important part of drilling oil and natural gas wells, as they are located at the drilling site. Vacuum trucks are used to remove drilling mud, drilling cuttings, cement, spills, and for removal of brine water from production tanks. They dispose of this in sump pits, treatment plants or if within safe levels may be spread out in a farmer's field.
Equipment is designed to collect, by suction, and transport the sewage and sludge. Cesspit emptier consists of a subframe connected to the vehicle's chassis. A cylindirical tank, a hydraulically openning full diameter tailgate and the vacuum system powered by the PTO mounted to the gearbox of the vehicle. All the functions and the load distribution of the equipment are properly arranged to the technical specifications of the chassis on which it is mounted. The equipment is manufactured in serial production principals taking into account legal regulations.
Thevacuum truck cubage from 2000L-16000L
The drive type with 4*2,4*4,6*4,6*6,8*4, you can choose left hand drive
Many truck chassis for you choice,such as Dongfeng,FAW,NorthBenz,Foton,NISSAN,Hino,
HOWO,SINOTRUK,JAC,ISUZU,etc.
Our gurantee period is 12months or 8000KM which comes first .
so if you have such requirements ,please contact me with cell phone 86-13872885121 .
dongfeng 5000L water sprinkle Vacumble septic pump truck sewer suction vehiclespecification:
| Item | unit | parameter | |||
| Vehicle model | 18m3Sewage Sucktion Truck | ||||
| Chassis model | EQ5253GFJ | ||||
| Overall dimensions | mm | 10100*2490*3650 | |||
| Fact cubage | L | 18000 | |||
| Mass in working order | kg | Approx11505 | |||
| Body internal dimensions | mm | TBD | |||
| Wheel base | 4350+1300 | ||||
| Engine | Model | C260-33 | |||
| Displacment/horsepower | 8300/191 | ||||
| Type | 6cylinder ,direct Inject , line , turbcharege | ||||
| Tire specification | 10.00R20 | Traction system | 6X4 | ||
| Axle | 11.5T | transmission | Fast 9 speed | ||
| Equipment | 1,Equipped withpower take off,transmission shaft,high pressure sewage tank,pipe network, sewage pipe for observing and cleanout equipment 2,Time for full suction<5min 3,tank rear cover can be opened by air and dump , | ||||
| Tank material | Q235 | ||||
| Tank thickness | Tank 6mm , head cover 6mm | ||||
| Fullfilling time | <5min | ||||
| Discharge time | <4min | ||||
| Vertical suction | 8M | ||||
| Dump angle | 45 degree | ||||
| vacuum pumpPump data | Model | 50qzxdg-45-400 | |||
| Brand | weilong | ||||
| No | 2 | ||||
| Rating rotate speed | 500r/mm | ||||
| Suction speed | 45L/S | ||||
| Main accessory | Hydraulic cylinder | 2pcs | |||
| oil and gas separator | 1pcs | ||||
| Oil tank | 18L | ||||
| High pressure oil pipe | 1pcs | ||||
| hydraulic directional control valve | 1pcs | ||||
| Three way valve | 1pcs | ||||
| moisture separator | 1pcs | ||||
dongfeng 5000L water sprinkle Vacumble septic pump truck sewer suction vehiclePhoto:
MOQ:Q1. Quality control
A:We make quality control for each step while producing and before shipping.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packagesbefore you pay the balance.LC terms is also can be accepted .
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.DAP etc .
Q4. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time dependson the items and the quantity of your order.For standard products, delivery time is as below:Water Tanker truck:7 days
Fuel tanker trailer:15-20days
Garbage Truck:15 days
Sweeper road truck:25 days
Wecker truck:7-10 days
Suction sewage/Fecal truck:7-15 days
Crane truck:15 days
Refrigerator/Van truck:7-15 days
Dump Truck:20 days
Concrete mixer truck:7-25 days
LPG :20-30 days
LED truck:7-15 days
(the above is left hand drive chassis ,if you need the right hand drive chassis ,delivery time is longer than Left hand drive truck,Detailed clauses are subject to contract .)
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. How to control truck quality?
A: we have Rich experienceworkers and engineer to control quality before and on production , we strictly followed STATE special truck technical specificationandsafety production specification .We have been in this line for over 15 years, dealing with all kinds of special trucks and trailers.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.Q9. Did you sell truck to our country before?A:Our main market is Africa, Asia, South America , Oceania,middle east , annual sales is around 5000units and keeping growing every year .Certificate :
Shipping :
