4X2 Asphalt Spraying Truck Liquid Heated Bitumen Asphalt Transport Tank Truck

  • 4X2 Asphalt Spraying Truck Liquid Heated Bitumen Asphalt Transport Tank Truck
  • USD 28500.30 /Unit
  • 1 Unit
  • 56 Unit
  • 23 days
Product Description
Descripton of Dongfeng 8 CBM Asphalt Tank Truck

Manual/automatic control spaying amount and homework width, each nozzle can be individually controlled, determinant nozzle free combination, so as to realize arbitrary adjust the width of spray.

temNo.Parameters
Chassis
GrossVehicleWeight15990kg
CurbWeight8495kg
LoadingWeight7300Kg
Wheelbase3950mm
Front/rearTread1940/1860mm
Approach/DepartureAngle32/15degree
FrontAxle6000kg
RearAxle10000kg
EngineB19033CumminsDieselEngine,
wateringcooling,fourstroke,6cylinderinline
Enginehorsepower190HPEUROIII
Displacement5.9L(Diesel)
MaxDrivingSpeed90km/h
CarbinDongfengtianjincarbin~3Passengerallowed,LeftHandDriving,withAirConditioner
Tire10R22.5(6pieces+1piecesparetire)
AsphaltTank8cbm
OutsideMaterialStainlessplate
Insulationlayer≤20ºC/8h
HydraulicSystem
HydraulicpumpCQB550-L
DrivingMotor05-110-BD31
ProportionalValveEFBG-03-160-HF/Taiwanbrand
ShuttlevalveShanxiYucibrand
OverflowValveShanxiYucibrand
ControlSystem
ControlSystemCLW-48-01/GermanySiemens
ControlMethodComputercontrol
Smartasphaltnozzle48pcs
HeatingSystem
HeatingmethodAutomaticheatingbyoil
BurnerG20/Italybrand
RadiatorRishengbrand
Heattransferoilpump40-25-160
GasolineEngine5.5kw
SpreadingWidth4m
SpreadingSpeed0.2~3.5L/min
SpreadingPrecision±2%




Company Information
1.Hubei Chengli Special Automobile Co, ltd which is appointed by Ministry of Industry and Information Technology of China, is a big manufactureeer producing all kinds of special trucks and semi-trailer.
2. Our company cooperates with famous chassis manufactureer, such as DONGFENG, FAW,SINOTRUK, JAC, SHACMAN, FOTON,CMAC,ISUZU, and etc. We can produce more than 300 kinds of special trucks and semi-trailer.
3.Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell to Africa, South-east Aisa, Australia, Middle-east and other place.
4.We serve the best service for each client.



Chengli Special automobile Co., Ltd also provide products as follows:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water Truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck Mounted Crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck,sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )


FAQ

Payment:
30% deposit by T/T after order /confirm/iation, 70% balance should be paid before delivery byT/T or L/C.Other type of payment can be discussed.

Packaging &Shipping:

1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving deposit.
3. By RORO or Bulk ship.

Delivery time:
25-45 working daysafter payment is received.


Our warranty:
1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare parts could be supplied by OEM at cost prices.
3.Our engineers are always ready to deal with technical problem.

If you are interested in our trucks, pls feel free to contact with me,I will give you our competitive qutation.

Contact person:Beryl
Tel:+86-13713604915
Product Images

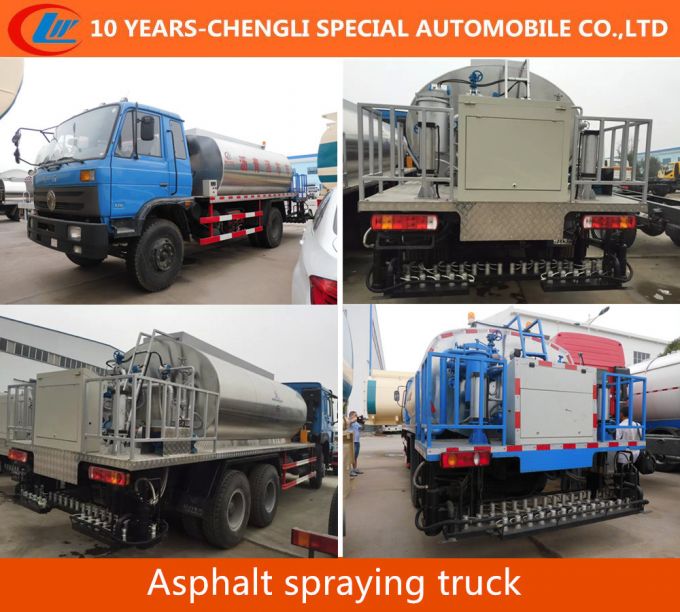

4X2 Asphalt Spraying Truck Liquid Heated Bitumen Asphalt Transport Tank Truck Images 1
Factory Show

Chengli Special Automobile Co., Ltd.

  Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.

  We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.

Factory Show

  Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive", promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.



Customer Visit

Customer VisitCustomer Visit

Our Services

1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.

2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.

3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.

4. Best Service: 24-hour hotline and email during communication.

5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.

Packaging & Shipping

Packaging:nude with wax.

Shipping:Ro-Ro/Bulk Ship/Container

Chengli Special Automobile Co., Ltd.Packaging & Shipping
