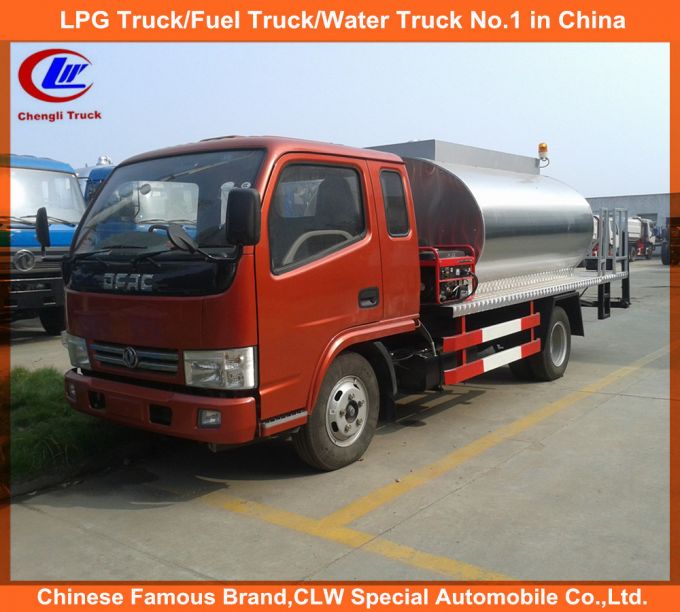

Dongfeng 120HP 6cbm Road Construction Truck
- USD 41000.46 /Unit
- 1 Unit
- 11 Unit
- 15 days
Competitive Price and Excellent Quality,
More than 10 years' experience as a manufacturer
CCC, ISO, BV certification
Perfect after-sale service
Customized products available with us,
Export covering More than 50 countries and regions
Annual production value topped 1500, 000, 000 RMB (240, 000, 000 US dollars) per year
East or West, Chengli Special Automobile Co., Ltd is the Best.
Chengli Special Automobile Co., Ltd, as the "Alibaba Group" in the special vehicle circle, has developed into the biggest professional special vehicle manufacturer of central China starting from scratch since 2004.
LPG tank is one of our most advantageous key products which ranks Top 5 in China, excellent engineers and high-grade production equipment as well as strict quality control system can ensure all the tank work well with 10-20 years use life.
Synchronous Chipsealer/Road Construction Equipment/Asphalt macadam/Roading maintance truck/ automatic asphalt distribution truck developed by our company covering SINOTRUK, DFAC, ISUZU, FAW, FOTON, JAC, JMC brand, is mainly used for road paving. The asphalt and gravel distributor truck consists of asphalt tank, gravel tank, hydraulic system, heating system, cleaning system, control system and lifting mechanism, etc. The chip sealer is a kind of hi-tech road construction equipment at the international level. Compare with its counterparts, our chip sealers are of high automation, even spray, easy operation, large loading capacity and great efficiency.
Technical Features
1. Synchronous chip sealer adopts famous brand chassis with reliable quality.
2. Asphalt tank adopts the heat preservation material of silicon acid aluminum and with good performance of heat preservation.
3. Asphalt tank can spray with certain quantity by fixed spray pipe or spray by hand spray gun. Asphalt pump is installed outside for convenience or for operations.
4. Pipeline cleaning adopts heat conducting oil and can be cleaned with high pressure air. The nozzles are not easily jammed.
5. The structure of chipping spread part is compact. It is comfortable for driving and convenient for use.
Chengli Special automobile Co., Ltd also provide products as follows:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water Truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck Mounted Crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
1)For more information, please contact us Freely
2)Contact person: Shirley Fu
3)Telephone number: +(86)-138 7288 2021
6) To see is to believe. Welcome to visit Chengli Special Automobile Co., Ltd.
Parameter
| Massparameter: | |||||
| cur bWeight(kg) | 4800 | TotalWeight ( kg ) | 1 0800 | ||
| RatedloadingWeight(kg) | 6 000 | Dimension(mm) | 6990*2000*2650 | ||
| ChassisParameter : | |||||
| ChassisModel | DFL11208 | Tyremodel | 7.00-16 | ||
| Wheelbase(mm) | 3800 | Axleloading(ton) | 1.5+3 | ||
| Transmission | 5forwarder,1reversegearmanualoperation | Brake | Airbrake | ||
| Clutchdescription | Drysingleplate,hydrauliccontrolbooster,mechanicaloperation | ||||
| Engineparameter : | |||||
| Enginemodel | CY4102-C3C,4cylinderinline,intercoolingengine | ||||
| Max.Power(kw) | 88 | ||||
| Fuel | Diesel | Displacement(ml) | 3856 | ||
| Sprayspecification : | |||||
| TankCapacity(m ³ ) | 5~6 | Spraywidth (m) | 4.5~6 | ||
| Hydraulicpumpmodel | CBQ 550-L | SprayValu me | 0.5-3.0 ( Kg ) | ||
| Hydraulicmotor | 05-110-BD31 ( Liyuan ) | InsulationThickness | 50mm | ||
| Controller | ZM - I | Nozzles | 30~ 39 | ||
| Burner | G 10 ( Italy ) | Asphaltpump | QGB450 /NYC-50-12 | ||
| Generator(Converter) | EC6500CX | Spraypump | Singlecylinderdieselgenerator | ||
| Aircompressor | Airpressure | 7kg/cm2 | |||
| Airflow | 5m2 | ||||
Hubei Chengli Special Automobile Co., Ltd is a famous specialied manufacturer of trucks for Municipal environmental construction, virescence, petrol medicals, container. Semi-trailers, transportation in China.
We own export licenseand all our truckss have passed ISO9001, ISO16949, GJB9001A Quality Certification and China Compulsory Certification(CCC). Due to the reliable quality and excellent after-sales service, the Brand Chengliwei is popular to worldwide. The trucks has been shipped to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.
Chengli Special Automobile Co., Ltd consisit to insist with "Surviving by the quality, Developing by the reputation, Technology creating new path, Service creating new brand". We aim to" credit, pragmatic, innovative, progressive"， promote the quality, deveope and manufacture more and more special vehicles with good quality and competitive price.
1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email during communication.
5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.
Packaging:nude with wax.
Shipping:Ro-Ro/Bulk Ship/Container
-
