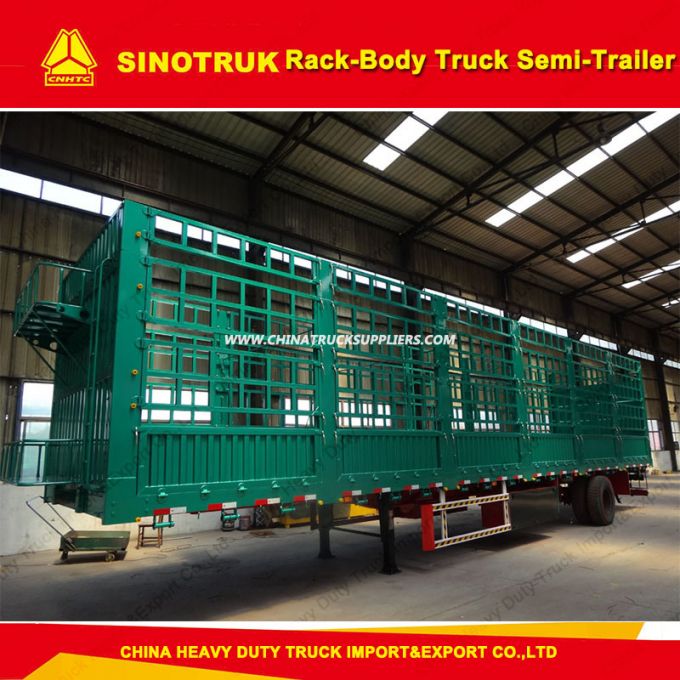

Tri-Axle 60 Tons Stake/Fence Truck Semi Trailer

  • Tri-Axle 60 Tons Stake/Fence Truck Semi Trailer
  • USD 10000.15 /Unit
  • 1 Unit
  • 21 Unit
  • 7 days
Product Description
Tri-Axle 60 Tons Stake/Fence Truck Semi Trailer

Our main products include full series products of CNHTC(HOWO,STR,Golden Prince,etc.), buses, trailers, including Dump Truck, tractor truck, concrete mier truck, sprinkler truck, water/Oil tank truck, Truck Mounted Crane, concrete pump truck.etc, low bed semi-trailer, flatbed semi-trailer, bulk cement semi-trailer, skeleton semi-trailer and spare parts for them.

Tri-Axle 60 Tons Stake/Fence Truck Semi Trailer

Tri-Axle 60 Tons Stake/Fence Truck Semi Trailer

1. Cargo truck Main Specifications:(Configurations can be changed)
ManufacturePhil-la-ya Special Vehicle Manufacturing Co., Ltd
Tare Weight7.5T
Loading Capacity60T
Outside Dimensions13820*2700*3600 mm
Interior Dimensions13716*2600*1800 mm
Tyre No12 +1 Spare Tire
Spare Tire Carrier1 set
Wheelbase1310mm
Axle NO.3
Axle Weight Load13T
Leaf-spring pcs10 pcs
Twist Locks(optional)Twelve nos in total.Four nos are fasten mode,four nos are up/down modethe and central locks can be laid down.
Traction Pin2'or 3.5'
Pin HeightAccording to the height of the tractor saddle
Tire Specifications11.00R20 14PR,12R22.5 14P
Main BeamMain Beams:Q345B/ST52-3 manganese plates,automatic submerged arc
Through Cross Beams:Q235
Main Beam Height:500mm
Upper Flange:16mm
Mid web:10mm
Lower Flange:18mm
Side Beam160mm
Sidewall Height1800 mm (adjustable) / 3mm thickness
ABSOptional
SuspensionMechanical heavy duty leaf-spring suspension
Brake SystemDual Lines Braking System With Automatic Air Chambers
Brake Air ChamberFour double and two single chamber
Electrical System24V, 7core socket, lights according to European standards
Tool Box1 box of standard tools
PaintingComplete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Color and LogoDepends on the customer's requirement
Floor3mm management plate
UsageIs it suitable for the transportation of the agricultural and sideline products and other light products.This kind of design is convenient for products' unloading, and it's not only satisfy the rated load but also reduce the burden of the compartments.
Tri-Axle 60 Tons Stake/Fence Truck Semi Trailer


2. Our Factory
SINOTRUK has an annual output of 180,000 vehicles and 200,000 engines capacity.

Tri-Axle 60 Tons Stake/Fence Truck Semi Trailer


3. Packing: Nude packing after painting wax or according to your requirement.
Shipping:By bulk cargo carrier, RORO


Tri-Axle 60 Tons Stake/Fence Truck Semi Trailer

4. Our Advantages
(1)Competitive Factory Price and Excellent Quality
(2)More than 20 years' experience as amanufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 90 countries and regions


5. FAQ
Q1:I don't want this configuration
A: The configuration can be changed according to your needs
Q2: Minimum order quantity?
A: MOQ is 1unit.
Q3:Productionperiod?
A:(Truck &trailer)Within 30days since the moment we got your down payment
(Parts)Within 7days since the moment we got your down payment
Q4: Payment term?
A:(Truck &trailer)30%T/T as deposit, the balance should be paid before delivery. or L/C
(Parts)100%T/T should be paid before delivery
Q5: Shipping?
A:(Truck &trailer)
by container or RoRo/Bulk shipment. (South America,Middle East, Africa, Oceania etc.)
by road or railway.(Russia, Mongolia, Kazakhstan, Uzbekistan ,Vietnam, Laos etc.)
(Parts)
by international courier service, such asDHL, TNT, UPS, or Fedex.The goods above $1000 can be shipped by sea
Q6: Can you supply some quick-wear truck or semi trailer parts ?
A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc.


6. Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.

7. Company information
China Heavy Duty Truck import&Export Co.,Ltd is one of the main exporters of Chinese trucks which is authorized by Ministry of Commerce
Staff of our company can provide the trucks meeting the requirement of customers at the best price. We have many years of experience in exporting trucks. If you want to buy any truck, trailer or truck parts,please contact us!
We sincerely hope to cooperate with you to expand market in your country!

Tri-Axle 60 Tons Stake/Fence Truck Semi Trailer




Basic Info Model NO. Stake/Fence Semi-Trailer Independent Suspension Type Multi-link Type Shape Van-type Axle Number 3 Tire Number 12 Self-dumping Not Self-dumping ABS Anti-lock Braking System ABS Anti-lock Braking System Material Steel Condition New Color as Customers Option Warranty 6-12 Months Trademark SINOTURK Transport Package Nude Packing Specification heavy duty truck Origin China HS Code 8704224000 Product Description Customer Question & Answer Ask something for more details (0) Tri-Axle 60 Tons Stake/Fence Truck Semi Trailer

Our main products include full series products of CNHTC(HOWO,STR,Golden Prince,etc.), buses, trailers, including dump truck, tractor truck, concrete mier truck, sprinkler truck, water/Oil tank truck, truck mounted crane, concrete pump truck.etc, low bed semi-trailer, flatbed semi-trailer, bulk cement semi-trailer, skeleton semi-trailer and spare parts for them.

Tri-Axle 60 Tons Stake/Fence Truck Semi Trailer

Tri-Axle 60 Tons Stake/Fence Truck Semi Trailer

1. Cargo Truck Main Specifications:(Configurations can be changed)
ManufacturePhil-la-ya Special Vehicle Manufacturing Co., Ltd
Tare Weight7.5T
Loading Capacity60T
Outside Dimensions13820*2700*3600 mm
Interior Dimensions13716*2600*1800 mm
Tyre No12 +1 Spare Tire
Spare Tire Carrier1 set
Wheelbase1310mm
Axle NO.3
Axle Weight Load13T
Leaf-spring pcs10 pcs
Twist Locks(optional)Twelve nos in total.Four nos are fasten mode,four nos are up/down modethe and central locks can be laid down.
Traction Pin2'or 3.5'
Pin HeightAccording to the height of the tractor saddle
Tire Specifications11.00R20 14PR,12R22.5 14P
Main BeamMain Beams:Q345B/ST52-3 manganese plates,automatic submerged arc
Through Cross Beams:Q235
Main Beam Height:500mm
Upper Flange:16mm
Mid web:10mm
Lower Flange:18mm
Side Beam160mm
Sidewall Height1800 mm (adjustable) / 3mm thickness
ABSOptional
SuspensionMechanical heavy duty leaf-spring suspension
Brake SystemDual Lines Braking System With Automatic Air Chambers
Brake Air ChamberFour double and two single chamber
Electrical System24V, 7core socket, lights according to European standards
Tool Box1 box of standard tools
PaintingComplete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Color and LogoDepends on the customer's requirement
Floor3mm management plate
UsageIs it suitable for the transportation of the agricultural and sideline products and other light products.This kind of design is convenient for products' unloading, and it's not only satisfy the rated load but also reduce the burden of the compartments.
Tri-Axle 60 Tons Stake/Fence Truck Semi Trailer


2. Our Factory
SINOTRUK has an annual output of 180,000 vehicles and 200,000 engines capacity.

Tri-Axle 60 Tons Stake/Fence Truck Semi Trailer


3. Packing: Nude packing after painting wax or according to your requirement.
Shipping:By bulk cargo carrier, RORO


Tri-Axle 60 Tons Stake/Fence Truck Semi Trailer

4. Our Advantages
(1)Competitive Factory Price and Excellent Quality
(2)More than 20 years' experience as amanufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 90 countries and regions


5. FAQ
Q1:I don't want this configuration
A: The configuration can be changed according to your needs
Q2: Minimum order quantity?
A: MOQ is 1unit.
Q3:Productionperiod?
A:(Truck &trailer)Within 30days since the moment we got your down payment
(Parts)Within 7days since the moment we got your down payment
Q4: Payment term?
A:(Truck &trailer)30%T/T as deposit, the balance should be paid before delivery. or L/C
(Parts)100%T/T should be paid before delivery
Q5: Shipping?
A:(Truck &trailer)
by container or RoRo/Bulk shipment. (South America,Middle East, Africa, Oceania etc.)
by road or railway.(Russia, Mongolia, Kazakhstan, Uzbekistan ,Vietnam, Laos etc.)
(Parts)
by international courier service, such asDHL, TNT, UPS, or Fedex.The goods above $1000 can be shipped by sea
Q6: Can you supply some quick-wear truck or semi trailer parts ?
A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc.


6. Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.

7. Company information
China Heavy Duty Truck import&Export Co.,Ltd is one of the main exporters of Chinese trucks which is authorized by Ministry of Commerce
Staff of our company can provide the trucks meeting the requirement of customers at the best price. We have many years of experience in exporting trucks. If you want to buy any truck, trailer or truck parts,please contact us!
We sincerely hope to cooperate with you to expand market in your country!

Tri-Axle 60 Tons Stake/Fence Truck Semi Trailer




Product Images
Tri-Axle 60 Tons Stake/Fence Truck Semi Trailer Images 1
Factory Show

   China Truck International Ltd. Is a refitted truck base of CNHTC in Jinan integrating R&D, production and sales of various special-purpose vehicles.

  Jinan Special Vehicle company predecessor-Jinan Garden Machinery Works was the domestic largest manufacturer of sprinklers at the earliest time, and was incorporated into CNHTC in 2005, removed to CNHTC Zhangqiu Industrial Park in 2007 and renamed as CNHTC Jinan Special-purpose Vehicle Co., Ltd. In 2007, and removed to the new factory at No. 17668, Panwang Road, Zhangqiu, Jinan in November 2010. The new factory covers an area of 360mu and a building area of 42, 000m2, and has 360 sets of various advanced equipment, and a staff of over 600 people including more than 60 professionals. Now, the company can yield 7, 000 dumpers and van vehicles and 3000 tank trucks annually, and will realize an annual production capacity of 15, 000 refitted vehicles in 2012.
