Sany Syg5360thb49 Hand Concrete Pump with Good Quality Concrete Pump Piston

  • Sany Syg5360thb49 Hand Concrete Pump with Good Quality Concrete Pump Piston
  • Price can be negotiated
  • 1 Unit
  • 96 Unit
  • 27 days
Product Description

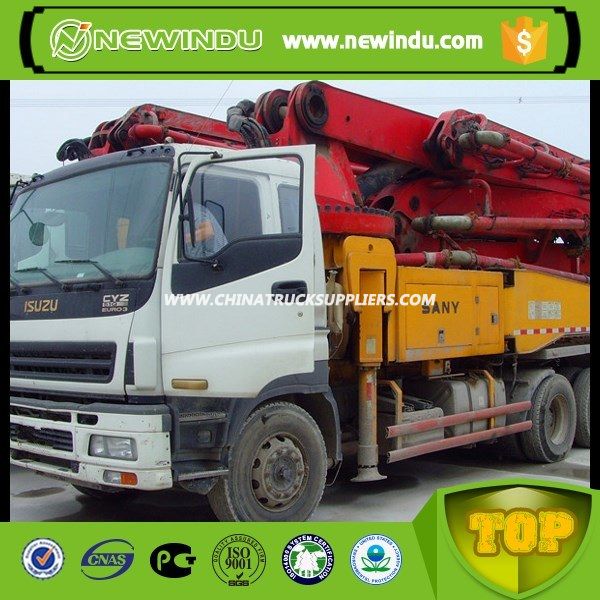

SANY SYG5360THB49 Hand Concrete Pump with Good Quality Concrete Pump Piston

Sany SYG5530THB 47 truck-mounted concrete pump has 47m vertical reach with the height limit programmed to prevent boom contact with an obstruction or overhead hazard. The 47m concrete pump provides the users reliable pumping performance along with the highly wear resistant parts including delivery pipe, discharge port, transition bushing, concrete piston, wear plate, cutting ring and delivery cylinder that improve the pumping efficiency and reduce down time.

ModelSYG5360THB49
DimensionLength12500mm
Width2500 mm
Height4000 mm
Empty Height36450kg
Boom&OutriggerVertical reach48.6m
Horizontal reach43.6m
Reach depth30.8m
Untolding reach13.9m
1st section-Length9760mm
1st section-Articulation89°
2nd section-Length7670mm
2nd section-Articulation180°
3rd section-Length7410mm
3rd section-Articulation180°
4th section-Length9670mm
4th section-Articulation235°
5th section-Length10060m
5th section-Articualtion215°
Rotation±360°
Outrigger spread L-R Front9300mm
Outrigger spread L-R-Rear9620mm
Pumping SystemOutput(Low/High-pressure)170/120 m3/h
Pressure(Low/High-pressure)8.3/12 Mpa
Max.stroke per minute(Low/High-pressure)29/19 times/min
Delivery cylinder diameter260mm
Stroke Length1900mm
Hydraulic systemOpen
Hydraulic system pressure32Mpa
Hydraulic tank capacity680L
Water tank capacity620L
Pipe size125mm
End hose length3m
End hose diameter125mm
Chassis





Engine power300/1800 kw/ rpm
Fuel tank capacity400L
Displacement11.946L
Max.speed80km/h
Brake distance≤10/30m km/h
