Electric Shuttle Bus, 8 Seat, Eg6088k, CE Approved, Brand New

  • Electric Shuttle Bus, 8 Seat, Eg6088k, CE Approved, Brand New
  • USD 6000.10 /Unit
  • 1 Unit
  • 91 Unit
  • 11 days
Product Description
Electric shuttle bus, 8seat, EG6088K
Description:
EG6088K, electric sightseeing car, 8seats, big bus mirror, auto-grade lights, 12' wheel, both DC and AC system are available


Key Components

Item
Description
ControllerCurtis controller, 275A-400A, imported from USA directly
Motor
Rated power 3KW (4.08HP) DC,5KW (6.8HP)DC or 7.5KW (10.2HP) AC motor, Chinese brand

Battery
Trojan battery, T105+, imported from USA directly
Charger
72V Smart transformed Charger (input 110V-240V, 50-60HZ, output 72V/25A)
48V high frequence onboard charger (input 90V-265V, 47-63HZ, output 48V/22A)


Performance

Item
Description
Passenger Capacity8

Range (loaded) (km)*

Up to 115
Max.Speed (km/h)Up to 40
Min.Turning radius (m)4.5
Max.Climbing ability(loaded)Up to 20%
Max.Movement after brake at speed of 20km/h≤4m
Max.Loading weight (kgs)640
Charging time (hour)8-10
Battery lifespan (cycles)750

* 1) based on the test conditions:20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2)Range will vary depending on temperature, grade, payload and driving style.
Dimensions

Item
Description
Overall dimensions (mm)4230x1490x2050 (LxWxH)
Min.Ground clearance (mm)140
Wheelbase (mm)1900
Front wheel tread (mm)1210
Rear wheel tread (mm)1200

Body and frame

Item
Description
frame &ChassisWelded steel framework with sand blasting and painting
BodyFibreglass(the first seat bottom and dashboard), PP(other seat bottoms and front body)
RoofFRP with aluminum frame, two layers, with roof handle
WindshieldLaminated glass with wiper
Roof supportsAluminum
SeatReborn sponge with artificial leather, highback
ArmrestAluminum
FloorBamboo floor with Skidproof leather
Beverage holders1 cups holders
Side rear view mirror2pcs, one long-arm mirror and one small mirror

Electric System

Item
Description
Lights
12V, headlight (H/L beam), front turning light, front fog light
Rear taillight (brake light and rear turing light) and reverse light

Horn
Electric horn, 12V
Reverse buzzerElectric, 12V
Combination switch
DC/DC converter
48V/12V or 72V/12V

Digital Meter
With Current meter, voltometer, speedometer and various indicators
Audio systemRadio with MP3 receiver and 2waterproof speaker

Steering &suspersion

Item
Description
Steering System
Single-stage rack and pinion steering system,
With automatic compensation function

Brake System
4-wheel hydraulic drum brake with hand park brake
AcceleratorResistance type, stepless speed change
Front suspensionIndependent suspension
Rear suspensionIntegrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber
Transmission systemClutch, 4F+1R gear box, transmission shaft or automatic drive system (stepless speed change)
Wheel &Tyre4J*12 Steel wheel &155R12 tyre, 8PR

Option Accessories
To increase the sales value of our vehicles, we also provide many optional accessories.

Item
Option descriptionItemOption description
12-point seatbelt9Wired microphone
2Overshadowing Curtain10Wiper with water sprayer
3Enclosure (PVC)11Solar panel
4Inner rear view mirror12Right hand drive system (RHD)
5Battery watering pipe13Electrical power steering
6Water pump (handle)14Front disc brake and rear drum brake with vacuum booster
7License plate light154J*12 Aluminum rim
8CD player
Product Images

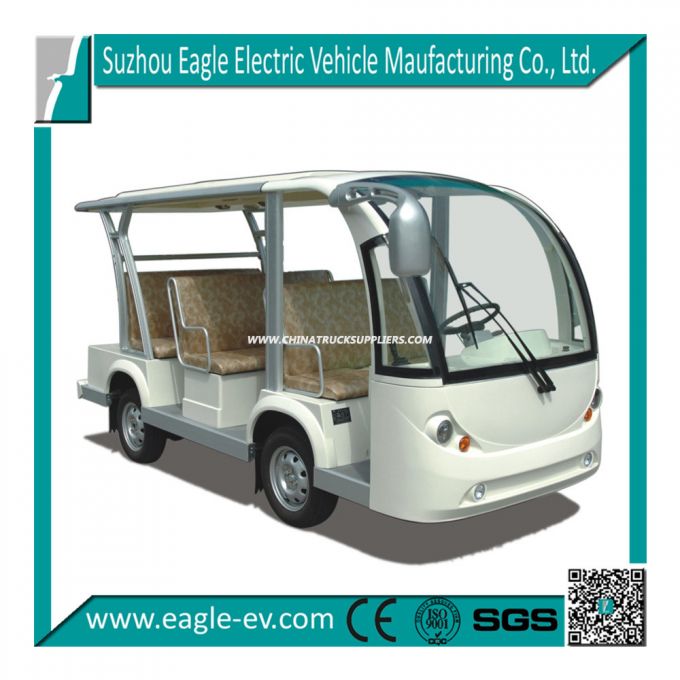

Electric Shuttle Bus, 8 Seat, Eg6088k, CE Approved, Brand New Images 1
