XCMG Official Hot Sale Manufacturer Gr135 Motor Grader
XCMG Official Hot Sale Manufacturer Gr135 Motor Grader

XCMG Official Hot Sale Manufacturer Gr135 Motor Grader

Categories: Construction Machinery , Graders
FOB Price:1.00 USD /Unit
Minimum Order Quantity:1 Unit(s)
Supply Ability:28 Unit(s)
Payment Terms:L/C, T/T, D/P, Western
Company Profile
Contact:Fang Fei
E-mail:
Fax:
Address: Industrial Zone 26, Economic Development Zone, Xuzhou, Jiangsu 221116
Website: http://www.chinatrucksuppliers.com/com/xcmgexport/
Detailed Description
Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.

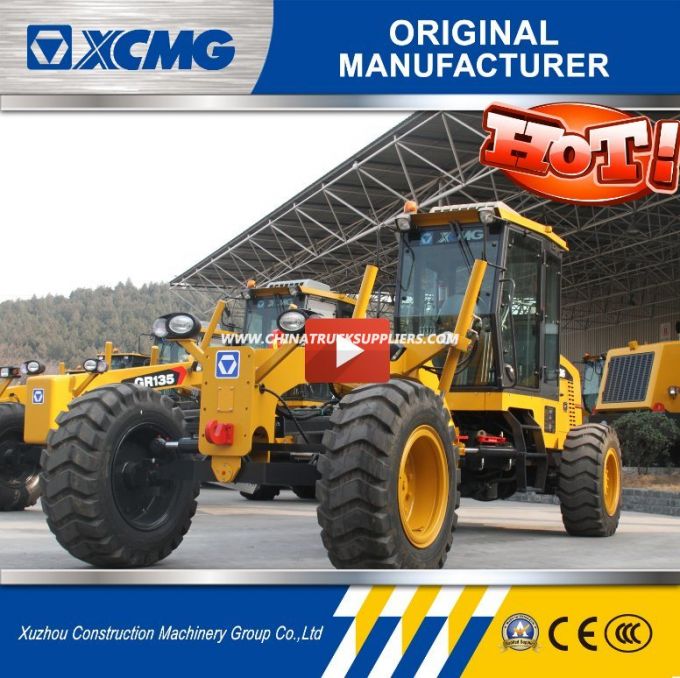

XCMG Official hot sale Manufacturer Gr135 Motor Grader
Engine Cummins
High performance and long service
Basic specification
Engine model6BT5.9
Rated power/speed100/2200kw/rpm
Dimension(LxWxH)8015×2380×3050mm
Operating weight(Standard)11200kg
Performance specification
Travelling speed ,forward5,8,13,20,30,42km/h
Travelling speed ,reverse5,13,30km/h
Tractive force(f=0.75)61.3KN
Max. grade ability30%
Tire inflation pressure300kPa
Working hydraulic pressure16MPa
Transmission pressure1.3~1.8MPa
Operating specification
Max. steering angle of front wheels±49°
Max. lean angle of front wheels±17°
Max. oscillation angle of front axle±15°
Max. oscillation angle of balance box16
frame articulation angle±27°
Min. turning radius using articulation6.6m
Biade
Maximum lift above ground410mm
Maximum depth of cutting515mm
Maximum blade position angle90°
Blade cutting angle54°-90°
Circle reversing rotation360°
Moldboard width X height3710×610mm


The XCMG GR Series Motor Graders are mainly used in ground leveling ,canalling , slope scraping ,earthmoving ,scarification or snow removal work on road, airfield ,farmland ,and so on .They are necessary construction machines for national defense engineering ,mine construction, town and country roads building ,and farmland improvement..
Performance and characteristic
New appearance design.
The articulation frame is adopted and matched with the steering of the front wheel, With small turning radius,maneuvering and flexible.
The electro-hydraulic controls the power shift gearbox,with 6ahead gears and 3 back gears.
The international matching hydraulic parts are adopted,with reliable operation.
The motions of the blade are fully hydraulically controlled.
The rear axle is the three-section driving axle which is provided with the NO-SPIN self-locking differential mechanism.
The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is improved .
The cab is grand and nice,with wide eyeshot and good sealing .
The front bulldozing plate, rear scarification device,front scarification harrow and automatic leveling device can be added .

Company profile
XCMG is aconstruction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-movingmachinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.Our other businesses include finance, leasing, and remanufacturing.

At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.

So, how do high-pressure hydraulic oil get? Each truck crane is equipped with ahydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.

Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
Ourcompanywillofferyouthehighqualityproductswithalowprice,quickdelivery,andprofessionalafter-saleservice.
FAQ
1: What kind terms ofpaymentcan be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Whatcertificatesare available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about thedelivery time?
A: 30 days after receiving the deposit.
4: What about thewarranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about theMinimum Order Quantity?
A: The MOQ is 1 pcs
