/Heavy Machinery RP953 Asphalt Concrete Paver for Sale
- USD 109500.26 /Unit
- 1 Unit
- 35 Unit
- 28 days
Product Description
Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.

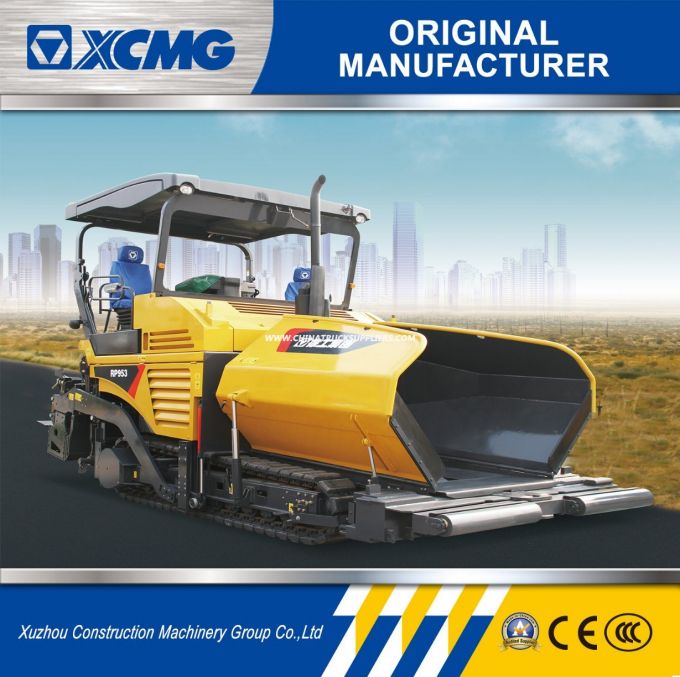

Heavy machinery RP953 Asphalt Concrete Paver for sale
Reliable drive system
Efficient feed/ material distribution system
Efficient control system
Strong power system
Advanced screed technology
Feeding technology: reliable and endurable
Large range of the clearance adjusting of the separate rod (330-480mm) meets the requirements of different paving conditions and reduces the segregation along the height direction.
It adopts Φ420x360 large diameter and coarse pitch blade, reducing the rpm and segregation.
Two reverse blades in material separate box reduce the medium segregation area.
Center cooling technology: advanced and unique
With the optimized configuration and optimal cooling performance, the combined cooling water tank is 50% large than the standard water tank of the diesel engine, which could ensure the machine working constantly in high temperature.
The diesel engine and the cooling system adopt the unique closing structure.
The heat of the machine is discharged forcefully.
Screed technology: mature and reliable
The most mature and reliable screed
The screed devices are of many kinds and multiple functions, and the optimal screed is selected according to the requirement of the user.
Dual-vibrating mechanisms could get the excellent compaction on the stabilized material.
The stepless and adjustable vibrating frequency could meet the requirements of various conditions.
Electric heating or gas heating is selected according to the requirement of the user.
Precise allocation
The key parts adopt the high strength materials: the bottom plate and protective devices adopt the imported high endurance steel plate from Germany.
High reliable power and transmission.
RP951A/RP902 is equipped with Deutz BF6M1013E engine, 137KW; RP952 is equipped with Shangchai D6114 diesel engine, 140kW; and the optimal is162kW. They could meet the requirements of different users.
Advanced technology
Triune travel and drive device features high reliability and convenient service.
One machine, multiple applications. It can pave the asphalt mixture, lime-flyash soil and stabilizing soil.
Simple operation
The control system adopts micro-computer controlling, featuring simplicity and convenience.
All control components are installed on the instrument box, easy to access.
The seat could be moved to outside featuring excellent visibility.
Easy maintenance
Integrated lubrication device prolongs the service life of the bearings on the positions in high temperature, and reduces the maintenance work.
The diesel engine hood adopts the spring lifting, which is easy for service; the cabin adopts the spring to descend and lift up, which is easy for transportation.
The side hood and diesel engine hood are easy to open, and the components often maintained are easy to access.
The pressure-testing points are distributed reasonably, and easy and rapid to measure.
Company profile
XCMG is aconstruction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-movingmachinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.Our other businesses include finance, leasing, and remanufacturing.
At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.
So, how do high-pressure hydraulic oil get? Each truck crane is equipped with ahydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.
Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
Ourcompanywillofferyouthehighqualityproductswithalowprice,quickdelivery,andprofessionalafter-saleservice.
FAQ
1: What kind terms ofpaymentcan be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Whatcertificatesare available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about thedelivery time?
A: 30 days after receiving the deposit.
4: What about thewarranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about theMinimum Order Quantity?
A: The MOQ is 1 pcs
Contact us
Mr Fang+86 187 9621 1467
Mr Ding+86 138 5200 7271
Mr zou+86 152 6202 3988
Heavy machinery RP953 Asphalt Concrete Paver for sale
Reliable drive system
Efficient feed/ material distribution system
Efficient control system
Strong power system
Advanced screed technology
| Item | Unit | RP953 |
| Basic paving width | m | 2.5 |
| Max paving width | m | 9.5 |
| Max paving thickness | mm | 320 |
| Paving speed | m/min | 0~18 |
| transport speed | Km/h | 0~2.8 |
| feed capacity | t/h | 700 |
| Hopper capacity | t | 14 |
| Gradient ability | % | 20 |
| Smoothness | mm/3m | ≤1.5 |
| slope leveling tolerance | % | ±0.02 |
| Engine type | / | BF6M1013ECP |
| Rated output | Kw/rpm | 150/2000 |
| Fuel tank | L | 300 |
| Generator output | Kw | 30 |
| Total weight | t | 22.5~30.8 |
| dimensiont | mm | 6610*2600*3950 |
Feeding technology: reliable and endurable
Large range of the clearance adjusting of the separate rod (330-480mm) meets the requirements of different paving conditions and reduces the segregation along the height direction.
It adopts Φ420x360 large diameter and coarse pitch blade, reducing the rpm and segregation.
Two reverse blades in material separate box reduce the medium segregation area.
Center cooling technology: advanced and unique
With the optimized configuration and optimal cooling performance, the combined cooling water tank is 50% large than the standard water tank of the diesel engine, which could ensure the machine working constantly in high temperature.
The diesel engine and the cooling system adopt the unique closing structure.
The heat of the machine is discharged forcefully.
Screed technology: mature and reliable
The most mature and reliable screed
The screed devices are of many kinds and multiple functions, and the optimal screed is selected according to the requirement of the user.
Dual-vibrating mechanisms could get the excellent compaction on the stabilized material.
The stepless and adjustable vibrating frequency could meet the requirements of various conditions.
Electric heating or gas heating is selected according to the requirement of the user.
Precise allocation
The key parts adopt the high strength materials: the bottom plate and protective devices adopt the imported high endurance steel plate from Germany.
High reliable power and transmission.
RP951A/RP902 is equipped with Deutz BF6M1013E engine, 137KW; RP952 is equipped with Shangchai D6114 diesel engine, 140kW; and the optimal is162kW. They could meet the requirements of different users.
Advanced technology
Triune travel and drive device features high reliability and convenient service.
One machine, multiple applications. It can pave the asphalt mixture, lime-flyash soil and stabilizing soil.
Simple operation
The control system adopts micro-computer controlling, featuring simplicity and convenience.
All control components are installed on the instrument box, easy to access.
The seat could be moved to outside featuring excellent visibility.
Easy maintenance
Integrated lubrication device prolongs the service life of the bearings on the positions in high temperature, and reduces the maintenance work.
The diesel engine hood adopts the spring lifting, which is easy for service; the cabin adopts the spring to descend and lift up, which is easy for transportation.
The side hood and diesel engine hood are easy to open, and the components often maintained are easy to access.
The pressure-testing points are distributed reasonably, and easy and rapid to measure.
Company profile
XCMG is aconstruction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-movingmachinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.Our other businesses include finance, leasing, and remanufacturing.
At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.
So, how do high-pressure hydraulic oil get? Each truck crane is equipped with ahydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.
Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
Ourcompanywillofferyouthehighqualityproductswithalowprice,quickdelivery,andprofessionalafter-saleservice.
FAQ
1: What kind terms ofpaymentcan be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Whatcertificatesare available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about thedelivery time?
A: 30 days after receiving the deposit.
4: What about thewarranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about theMinimum Order Quantity?
A: The MOQ is 1 pcs
Contact us
Mr Fang+86 187 9621 1467
Mr Ding+86 138 5200 7271
Mr zou+86 152 6202 3988
